Air Engraving Pens for Wood, Glass, Plastic - PAS-361, PAS-100Air Marking Pens, Engraving Pen Tools, Pneumatic
These tools write on a variety of materials such as steel up to Rc-64, glass, plastic and wood. PAS-361 can also be used for deburring, trimming and is excellent for detailed carving and jobs requiring intricate clean up.
PAS-361 – Air Marking Pen and Mini-Chisel Scaler
- Light weight, easy to operate
- Remove stylus and convert tool to chisel type scaler
- Stylus will write on materials up to Rc-64
- Adjustable throttle for variety of jobs
- Hardened piston for long life
- Interchangeable with CP-9361

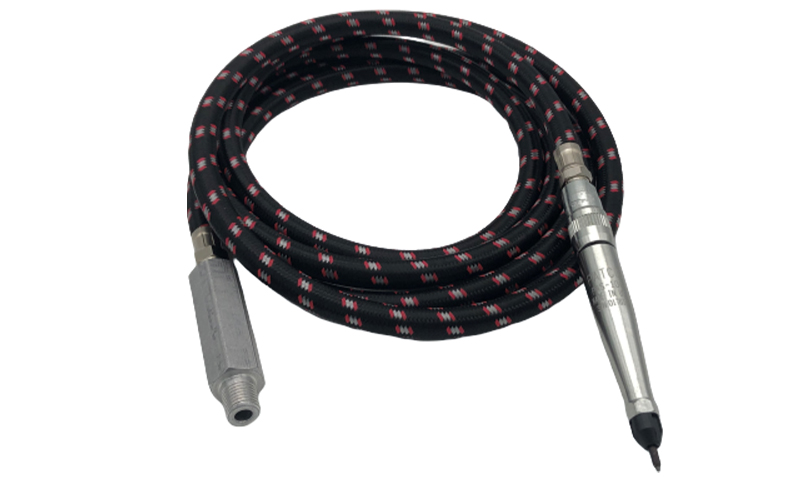

PAS-100 Air Marking Pen
- Made for precision and durability
- Stylus will write on materials up to Rc-64

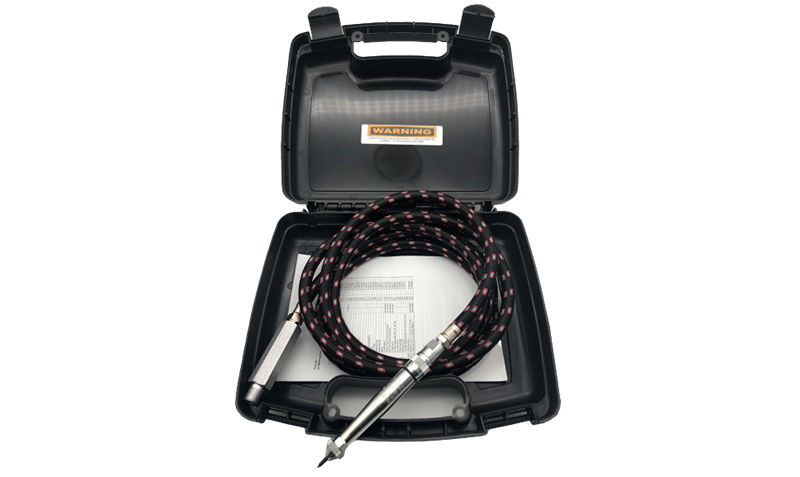

Standard Equipment for PAS-361 and PAS-100
- 7177 Stylus
- 7381 Air Filter Assembly
- 7886 Air Line
- 7999 Carrying Case
Optional Equipment

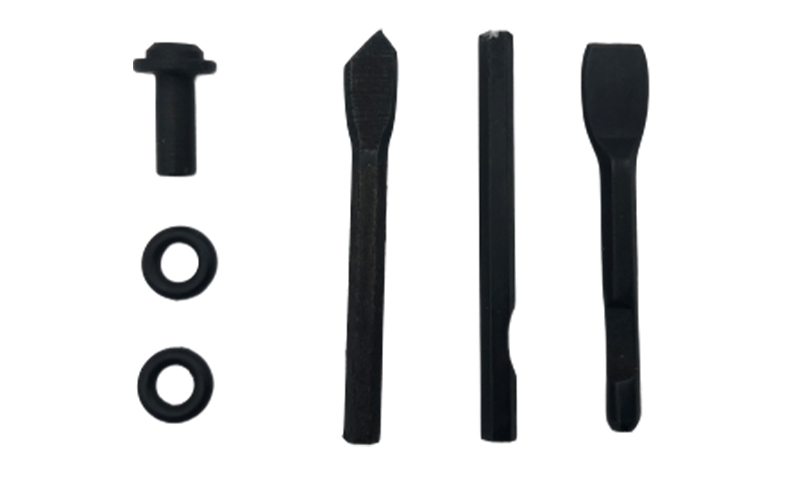

- 7425 Chisel Kit for use with PAS-361
- 1/4″ Flat Chisel
- Round Nose Chisel
- Chisel Blank
- Anvil
- ‘O’ Rings
Please click on model number to view Part Prints
| Patco Model # | Overall Length | Net Weight | Inlet | Hose I.D. | CFM |
|---|---|---|---|---|---|
| PAS-100 | 5" | 5oz. | 1/8" NPT | 1/4" | 1 |
| PAS-361 | 5" | 5oz. | 1/8" NPT | 1/4" | 1 |
Click here to view our full Air Marking Pens catalog.
Modified to Fit - Built to Last
Need something specific? We routinely adapt and modify our tool lineup to match unique customer requirements.
