Right Angle Grinders - Type 27, Long Shaft/Extended - GAL-1340, GAL-13504 Inch Wheel, Small Angle Head (Cross Reference CP-3040-LASTIM, CP-3040 GASTIM)
Patco angle grinders and sanders are rugged, powerful and designed to reach those hard to reach areas. These pneumatic angle grinders have one of the smallest angle heads in the industry. The powerful .7 h.p. motor means the operator still has the power to get the job done. These grinders and sanders are available in a variety of spindle sizes 1/4″-20, 3/8″-24 and 5/8″-11. The new three piece collet design now accepts a variety of double angle collets. The GA-11 series grinder has a wick lubricating system and is excellent for those jobs that require a heavy duty right angle grinder.

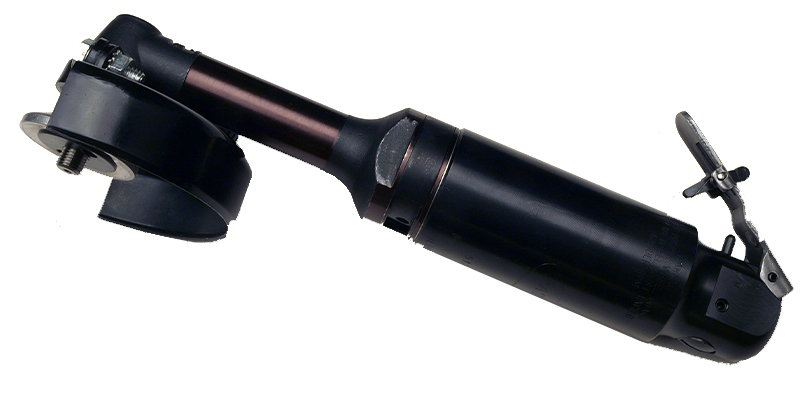

GAL-1340 Type 27 Extended Right Angle Grinder
(Cross Reference CP-3040-LASTIM / CP-3040 GASTIM)
The Patco GAL-1340 13,500 RPM Extended Right Angle Grinder with 3/8-24” spindle and type 27 wheel nuts comes standard with a 4” guard. The extension on the angle head makes it easy to access tight work surfaces and is a reliable tool for industrial applications in foundries, welding shops, fabrication plants, steel mills and shipyards. Each tool is equipped with a rugged 1 HP motor interchangeable across both the 1340 and 1350 lines, as well as with CP-9113/CP-9113G grinders, making its versatility unmatched. Its steel motor housing is made to withstand even the most rigorous work conditions over long periods of time. The housing is also available in a lightweight aluminum for a lighter feel.
Please click on model number to view Part Prints
| Model # | H.P. | RPM | Throttle | Spindle | Wheel | O.A.L. | Net Wt | Housing | Air Inlet |
|---|---|---|---|---|---|---|---|---|---|
| GAL-1340 | .7 | 13,500 | Safety | 3/8"-24 | 4" Type 27 | 10" | 3 1/2 lbs. | Steel | 1/4" NPT |
| 3/4" Long | |||||||||
| GAL-1340A | .7 | 13,500 | Safety | 3/8"-24 | 4" Type 27 | 10" | 2 3/4 lbs. | Aluminum | 1/4" NPT |
| 3/4" Long |

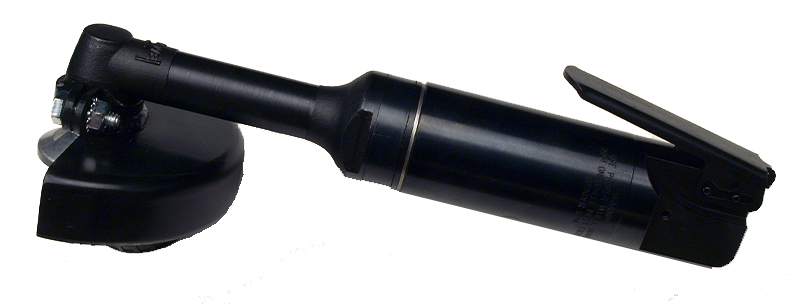

GAL-1350 Type 27 Extended Right Angle Grinder
(Cross reference CP-3040-LASTIM / CP-3040-GASTIM)
The Patco GAL-1350 13,500 RPM Extended Right Angle Grinder with 3/8-24” spindle and type 27 wheel nuts comes standard with a 4” guard. The extension on the angle head makes it easy to access tight work surfaces and is a reliable tool for industrial applications in foundries, welding shops, fabrication plants, steel mills and shipyards. Each tool is equipped with a rugged 1 HP motor interchangeable across both the 1340 and 1350 lines, as well as with CP-9113/CP-9113G grinders, making its versatility unmatched. Its steel motor housing with a safety lock-off lever system (differs from the 1340 body lever style) is made to withstand even the most rigorous work conditions over long periods of time. The housing is also available in a lightweight aluminum for a lighter feel.
Please click on model number to view Part Prints
| Model # | H.P. | RPM | Throttle | Spindle | Wheel | O.A.L. | Net Wt | Housing | Air Inlet |
|---|---|---|---|---|---|---|---|---|---|
| GAL-1350 | .7 | 13,500 | Safety Lock-off | 3/8"-24 | 4" Type 27 | 10 1/4" | 3 3/4 lbs. | Steel | 1/4" NPT |
| 3/4" Long | |||||||||
| GAL-1350A | .7 | 13,500 | Safety Lock-off | 3/8"-24 | 4" Type 27 | 10 1/4" | 3 lbs. | Aluminum | 1/4" NPT |
| 3/4" Long |
