Needle Scalers, Weld Flux Chisels - Air - P-182 SeriesHeavy-Duty, Pneumatic, For Removing Sand From Castings, Trimming Flash, Cutting Metal, Paint Removal(Parts Interchangeable With IR-182 Model Tools)
Patco has three models of weld flux chisel and needle scalers. Patco scalers are made in the USA with high-quality hardened components. These tools are excellent for removing weld spatter, rust, cement and other debris from a variety of surfaces.
Patco riveters and air hammers offer the power and control needed to uniformly drive rivets used in aircraft and other assembly operations. This versatile tool can also be used for chipping, scraping, driving and peening applications. Manufactured using hardened steel piston and cylinder for maximum durability, these tools come in a range of barrel bore and stoke lengths and have a precision valve designed for slow heavy blows necessary to drive and hammer.
P-182 Series
(Parts interchangeable with IR-182 model tools)
P-182-L
Patco P-182-L scaler is an excellent tool for knocking sand from castings, trimming flash, chipping weld splatter, cutting metal, and removing paint and gaskets. A needle attachment is an optional accessory (see P-182-LN). The P-182-L is used in a variety of fields including construction, fabrication, and refineries.
P-182-LN
Patco P-182-LN scalers offer the same capabilities and durability as the P-182-L, but come equipped with a 5” or 7” needle attachment. The P-182-LN has a round tube end and removable needle attachment, which allows the tool to be reverted back to a chisel scaler. 5” or 7” hardened alloy needles are standard. The P-182-LN is used in a variety of fields including construction, fabrication, and refineries.

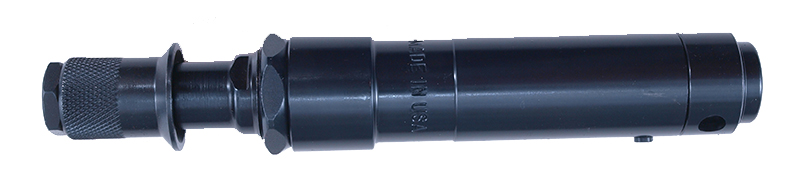

P-182-P
Patco P-182-P scalers offer the same capabilities and durability as the P-182-L, but come equipped with a push-to-start handle, excellent for use in vertical positions and hard to reach areas. The P1-B-P is used in a variety of fields including construction, fabrication, and refineries.
P-182-PN
Patco P-182-PN scalers offer the same capabilities and durability as the P-182-P, but come equipped with a 5” or 7” needle attachment. The P-182-PN has a round tube end and removable needle attachment, which allows the tool to be reverted back to a chisel scaler. 5” or 7” hardened alloy needles are standard. The P-182-PN is used in a variety of fields including construction, fabrication, and refineries.
| Model # | Blows/min | Throttle | Stroke | O.A.L. | Weight | Bore | Air inlet |
|---|---|---|---|---|---|---|---|
| P-182-L | 4,000 | Lever | 1 1/16" | 9" | 4 lbs | 15/16" | 1/4" |
| P-182-LN | 4,000 | Lever | 1 1/16" | 15" | 6 1/4 lbs | 15/16" | 1/4" |
| P-182-P | 4,000 | Push | 1 1/16" | 10 1/8" | 3 3/4 lbs | 15/16" | 1/4" |
| P1-B-PN | 4,000 | Push | 1 1/16" | 16 1/8" | 6 lbs | 15/16" | 1/4" |
Chisels for P-182-L and P-182-P
| Description | Width | 7" | 12" | 18" |
|---|---|---|---|---|
| Blank | 5331 | 5331-12 | 5331-18 | |
| Flat chisel | 3/4" | 5332 | 5332-12 | 5332-18 |
| Scaling chisel | 1 3/8" | 5333 | 5333-12 | 5333-12 |
| Angle chisel | 1 3/8" | 5334 | 5334-12 | 5334-18 |
| Wide scraper | 2" | 5335 | ||
| Wide scraper | 3" | 5336 | ||
| Diamond point | 1/4" | 5337 | ||
| Round nose | 5/16" | 5338 | ||
| Cape chisel | 5/16" | 5339 | ||
| Panel cutter | 5340 | |||
| Heavy blade flat | 1 1/4" | N/A |
