Wheel Grinder - Long Shaft/Extended - GE-1340-W, GE 1350-W Pneumatic Die Grinder, Air, Made in the USA(Cross Reference CP-3040-LANHUT, CP-3040-GANHUT)
PATCO die grinders and routers have a longstanding reputation for durability and dependability. These all purpose steel housing hand grinders are available in short or extended style; collet or wheel format; front and rear exhaust designs. Our air tools come in a variety of wheel size and type and our double angle collets are available in a number of sizes. All -1340 and -1350 models have interchangeable motor components.

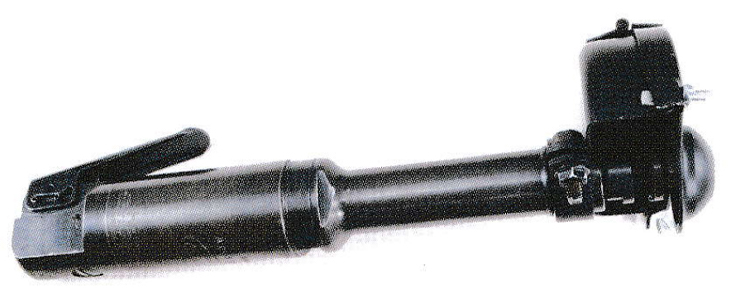

GE-1340-W Extended Wheel Grinder
(Cross Reference CP-3040-LANHUT)
Patco GE-1340-W 18,000 RPM Extended Wheel Grinders with interchangeable 2", 3" and 4" wheel guards and side exhaust system are ideal tools for weld smoothing, casting clean up, and burr removal in fabrication shops, die shops, shipyards, power plants, and refineries. Each tool is equipped with a rugged 1 HP motor interchangeable across both the G-1340 and G-1350 lines, as well as with CP-9113/CP-9113G grinders, making its versatility unmatched. Its steel motor housing is made to withstand even the most rigorous work conditions over long periods of time. The housing is also available in a lightweight aluminum making it a high quality aluminum pneumatic tool.
Please click on model number to view Part Prints
| Model # | H.P. | RPM | Throttle | Wheel* | O.A.L. | Net Wt | Housing | Air Inlet |
|---|---|---|---|---|---|---|---|---|
| GE-1340-W | .9 | 18,000 | Safety | 3" | 12 1/2" | 3 3/4 lbs. | Steel | 1/4" NPT |
| GE-1340A-W | 3 lbs. | Aluminum |

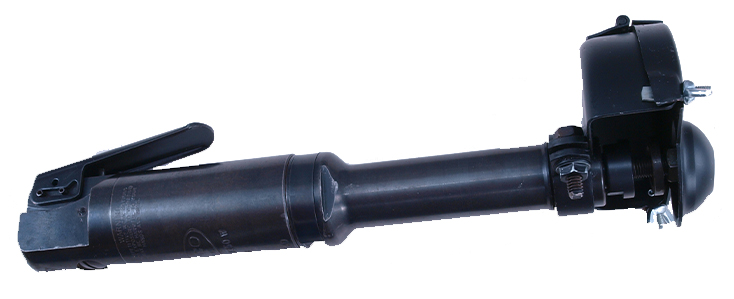

GE-1350-W Extended Wheel Grinder
(Cross Reference CP-3040-GANHUT)
Patco GE-1350-W 18,000 RPM Extended Wheel Grinders with interchangeable 2”, 3” and 4” wheel guards and side exhaust system are ideal tools for weld smoothing, casting clean up, and burr removal in fabrication shops, die shops, shipyards, power plants, and refineries. Each tool is equipped with a rugged 1 HP motor interchangeable across both the G-1340 and G-1350 lines, as well as with CP-9113/CP-9113G grinders, making its versatility unmatched. Its steel motor housing with a safety lock-off lever system (differs from the 1340 body lever style) is made to withstand even the most rigorous work conditions over long periods of time. The housing is also available in a lightweight aluminum for a lighter feel.
Please click on model number to view Part Prints
| Model # | H.P. | RPM | Throttle | Wheel* | O.A.L. | Net Wt | Housing | Air Inlet |
|---|---|---|---|---|---|---|---|---|
| GE-1350-W | .9 | 18,000 | Safety lock-off | 3" | 12 3/4" | 4 lbs. | Steel | 1/4" NPT |
| GE-1350A-W | 3 3/4 lbs. | Aluminum |
Click here to view our full Die Grinders catalog.
