Die Grinder - Long Shaft/Extended, Heavy-Duty - GE-1340-C, GE-1350-C1/4" Collet, Pneumatic Die Grinders(Cross Reference CP-9113ES, CP-9113GES)
PATCO die grinders and routers have a longstanding reputation for durability and dependability. These all purpose steel housing hand grinders are available in short or extended style; collet or wheel format; front and rear exhaust designs. Our air tools come in a variety of wheel size and type and our double angle collets are available in a number of sizes. All -1340 and -1350 models have interchangeable motor components.
.jpg)
GE-1340-C Extended Die Grinder / Heavy Duty Ext Die Grinder
(Cross Reference CP-9113ES)
The extension on our GE-1340-C makes it ideal for working inside of deep crevices or other recessed areas. In addition the extended air tool is outfitted with an adjustable side exhaust and a highly accurate double angle collet. The GE-1340-C is equipped with our rugged 1HP motor making all of the motor parts interchangeable with both the G-1340 and G-1350 lines, as well as with the CP-9113ES.

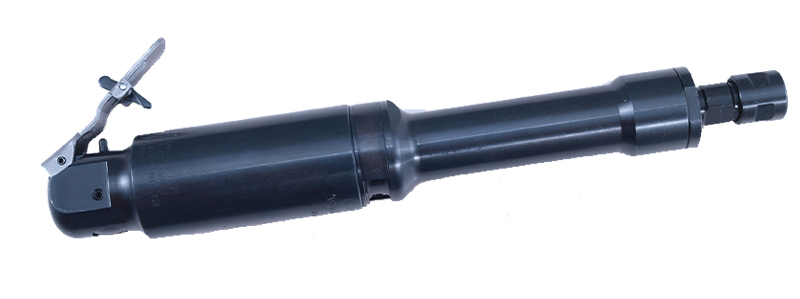

GE-1340-C-HD Series
Our GE-1340-C-HD extended heavy duty die grinders offer the same capabilities as our GE-1340-C series, but are equipped with a heavy duty spindle, shank, bearings and extended housing that increase the tools durability and performance. At 1 HP and 25,000 RPM this die grinder offers enough power and length to work effectively in the hard-to-reach areas. The housing is also available in a lightweight aluminum and 18,000 RPM.
Please click on model number to view Part Prints
| Model # | H.P. | RPM | Throttle | Collet Insert | O.A.L. | Net Wt | Housing | Air Inlet |
|---|---|---|---|---|---|---|---|---|
| GE-1340-C | .9 | 25,000 | Safety | 1/4" STD* | 11 1/4" | 3 1/4 lbs. | Steel | 1/4" NPT |
| GE-1340-C-HD | ||||||||
| GE-1340A-C | .9 | 25,000 | Safety | 1/4" STD* | 11 1/4" | 2 3/4 lbs. | Aluminum | 1/4" NPT |
| GE-1340AC-HD |
.jpg)

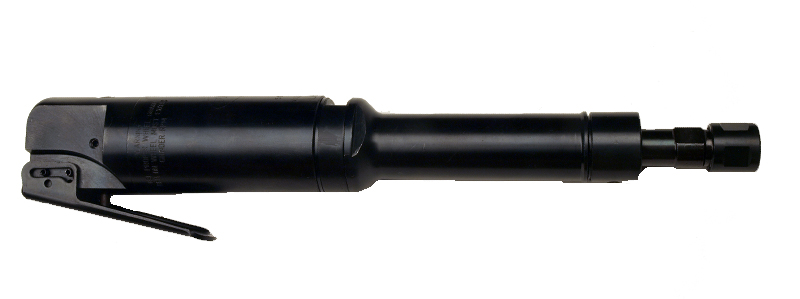

GE-1350-C Extended Die Grinder / Heavy Duty Ext Die Grinder
(Cross Reference CP-9113GES)
Our GE-1350-C extended die grinders offer the same capabilities as our GE-1340-C series. This master extended pneumatic tool is equipped with a steel motor housing and the added feature of our unique safety lock-off lever system. These extended die grinders are made to withstand even the most rigorous work conditions over long periods of time. The housing is also available in a lightweight aluminum. At 1 HP and 25,000 RPM this die grinder offers enough power and length to work effectively in the hard-to-reach areas. This air tool is also offered at 18,000 RPM.
GE-1350-C-HD Series
Our GE-1350-C-HD extended heavy duty die grinders offer the same capabilities as our GE-1350-C series, but are equipped with a heavy duty spindle shank, bearings and extended housing that increase the tools durability and performance. This air grinder offers our durable safety lock-off lever system (differs from the 1340 body lever style) on either a steel or aluminum housing. At 1 HP and 25,000 RPM this die grinder offers enough power and length to work effectively in the hard-to-reach areas.
Please click on model number to view Part Prints
| Model # | H.P. | RPM | Throttle | Collet Insert | O.A.L. | Net Wt | Housing | Air Inlet |
|---|---|---|---|---|---|---|---|---|
| GE-1350-C | .9 | 25,000 | Safety lock-off | 1/4" STD* | 11 1/2"> | 3 1/2 lbs. | Steel | 1/4" NPT |
| GE-1350-C-HD | ||||||||
| GE-1350A-C | .9 | 25,000 | Safety lock-off | 1/4" STD* | 11 1/2" | 3 lbs. | Aluminum | 1/4" NPT |
| GE-1350A-C-HD |
Click here to view our full Die Grinders catalog.
