Right Angle Grinders - Collet Style, Long Shaft/Extended, Interchangeable Collets - GAL-1340-C, GAL-1350-C(Cross Reference CP-3040-LASCID, CP-3040-GASCID)
Patco angle grinders and sanders are rugged, powerful and designed to reach those hard to reach areas. These pneumatic angle grinders have one of the smallest angle heads in the industry. The powerful .7 h.p. motor means the operator still has the power to get the job done. These grinders and sanders are available in a variety of spindle sizes 1/4″-20, 3/8″-24 and 5/8″-11. The new three piece collet design now accepts a variety of double angle collets. The GA-11 series grinder has a wick lubricating system and is excellent for those jobs that require a heavy duty right angle grinder.

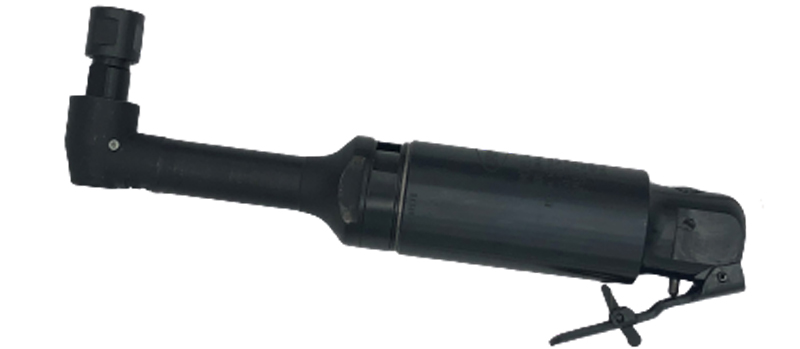

GAL-1340-C Collet style Extended Right Angle Grinder
(Cross reference CP-3040-LASCID / CP-3040-GASCID)
The Patco GAL-1340-C 13,500 RPM Extended Right Angle Grinder with ¼” 200 series double angle collet brings the same durability and finesse as the GAL-1340, along with the capability of interchangeable collets to ensure extreme accuracy while grinding with carbide burrs and mounted points. The extension on the angle head makes it easy to access tight work areas and is a reliable tool for industrial applications in foundries, welding shops, fabrication plants, steel mills and shipyards. Each tool is equipped with a rugged 1 HP motor interchangeable across both the 1340 and 1350 lines, as well as with CP-9113/CP-9113G grinders, making its versatility unmatched. Its steel motor housing is made to withstand even the most rigorous work conditions over long periods of time. The housing is also available in a lightweight aluminum for a lighter feel.
| Model # | H.P. | RPM | Throttle | Spindle | O.A.L. | Net Wt | Housing | Air Inlet |
|---|---|---|---|---|---|---|---|---|
| GAL-1340-C | .7 | 13,500 | Safety | 1/4" STD | 10" | 3 1/4 lbs. | Steel | 1/4" NPT |
| GAL-1340A-C | 2 1/4 lbs. | Aluminum |

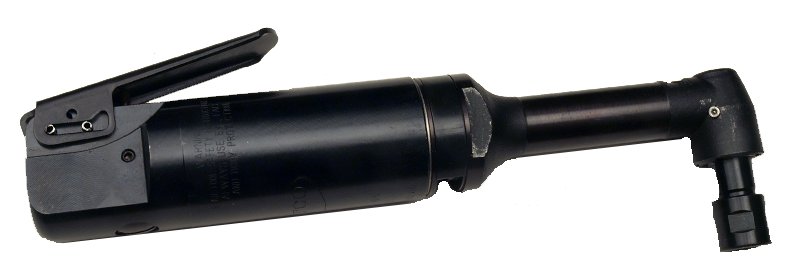

GAL-1350-C Collet Style Extended Right Angle Grinder
(Cross reference CP-3040-LASCID / CP-3040-GASCID)
The Patco GAL-1350-C 13,500 RPM Extended Right Angle Grinder with ¼” 200 series double angle collet brings the same durability and finesse as the GAL-1350, along with the capability of interchangeable collets to ensure extreme accuracy while grinding with carbide burrs and mounted points. The extension on the angle head makes it easy to access tight work areas and is a reliable tool for industrial applications in foundries, welding shops, fabrication plants, steel mills and shipyards. Each tool is equipped with a rugged 1 HP motor interchangeable across both the 1340 and 1350 lines, as well as with CP-9113/CP-9113G grinders, making its versatility unmatched. Its steel motor housing with a safety lock-off lever system (differs from the 1340 body lever style) is made to withstand even the most rigorous work conditions over long periods of time. The housing is also available in a lightweight aluminum for a lighter feel.
| Model # | H.P. | RPM | Throttle | Spindle | O.A.L. | Net Wt | Housing | Air Inlet |
|---|---|---|---|---|---|---|---|---|
| GAL-1350-C | .7 | 13,500 | Safety Lock-off | 1/4" STD | 10 1/4" | 3 lbs. | Steel | 1/4" NPT |
| GAL-1350A-C | 2 1/4 lbs. | Aluminum |
Click here to view our full Angle Grinders catalog.
