Die Grinders - 1/4" Collet - G-1340, G-1350Pneumatic Die Grinder, Air, Made in the USA (Cross Reference CP-9113)
PATCO die grinders and routers have a longstanding reputation for durability and dependability. These all purpose steel housing hand grinders are available in short or extended style; collet or wheel format; front and rear exhaust designs. Our air tools come in a variety of wheel size and type and our double angle collets are available in a number of sizes. All -1340 and -1350 models have interchangeable motor components.

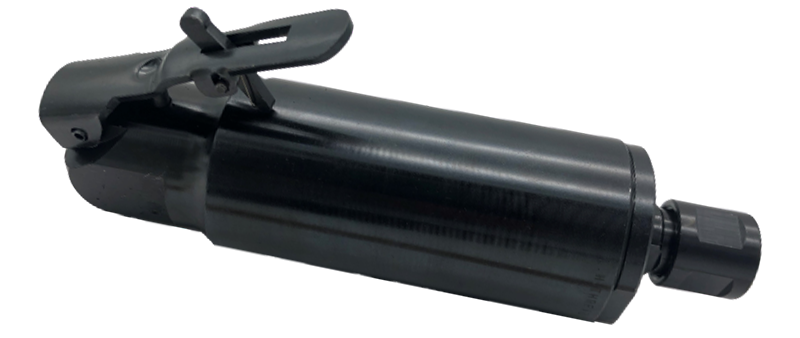

G-1340 Die Grinders
(Cross Reference CP-9113)
PATCO G-1340 series die grinders are equipped with a rugged 1 HP motor that is offered in a 15,000, 18,000, or 25,000 RPM model. Its steel motor housing is made to withstand even the most rigorous work conditions over long periods of time. The housing is also available in a lightweight aluminum. In addition this high quality air tool is outfitted with a highly accurate ¼" double angle collet. The motor parts are interchangeable across both the G-1340 and G-1350 lines, as well as with CP-9113/CP-9113G grinders, making it far better than anything available at Harbor Freight.
Please click on model number to view Part Prints
| Model # | H.P. | RPM | Throttle | Collet Insert | O.A.L. | Net Wt | Housing | Air let |
|---|---|---|---|---|---|---|---|---|
| G-1340 | .9 | 25,000 | Safety | 1/4" STD* | 6 1/4" | 2 1/4 lbs. | Steel | 1/4" NPT |
| G-1340-18 | 18,000 | |||||||
| G-1340A | .9 | 25,000 | Safety | 1/4" STD* | 6 1/4" | 1 1/2 lbs. | Aluminum | 1/4" NPT |
| G-1340A-18 | 18,000 |
G-1350 Die Grinders
(Cross Reference CP-9113G)
The G-1350 series pneumatic die grinders come with our 1 HP Rugged motor and is equipped with a safety lock off lever system unique to the G-1350 die grinder. This industrial power air tool comes with the option of steel or a lightweight aluminum housing. Similar, yet a much better option than Henry, Top Cat, and Cleco tools.
Please click on model number to view Part Prints
| Model # | H.P. | RPM | Throttle | Collet Insert | O.A.L. | Net Wt | Housing | Air let |
|---|---|---|---|---|---|---|---|---|
| G-1350 | .9 | 25,000 | Safety lock-off | 1/4" STD | 6 1/2" | 2 1/2 lbs. | Steel | 1/4" NPT |
| G-1350-18 | 18,000 | |||||||
| G-1350A | .9 | 25,000 | Safety lock-off | 1/4" STD* | 6 1/2" | 1 1/2 lbs. | Aluminum | 1/4" NPT |
| G-1340A-18 | 18,000 |
