Straight Die Grinders - Rear Exhaust, Long Shaft/Extended, 1/4" Collet - DE-2350, DE-2550, DE-2750Pneumatic Die Grinder, Air
Patco Air Tools is excited to announce the release of our new tool line ~ GLOBAL LINK TOOLS!
Global Link Tools are a cost effective option to fit the various budget demands of today’s economy without sacrificing quality. Our new line of tools meet all of the strict manufacturing requirements of PATCO AIR TOOLS as well as the quality, value, performance and dependability that our customers expect, demand, and trust from all of our fine products.

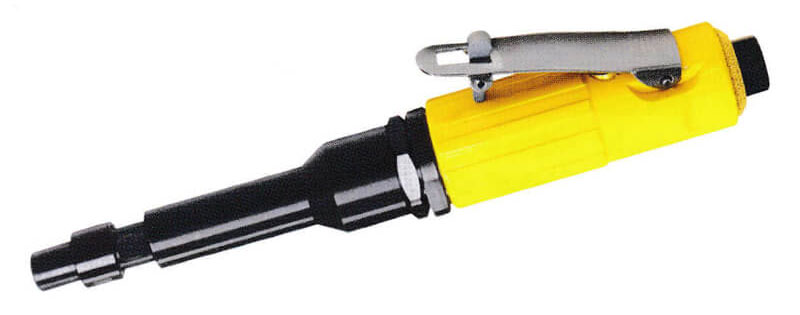

DE-2350 - 1/4" Extended Straight Die Grinder Rear Exhaust
Features a hardened alloy steel cylinder and rotor to maintain power while ensuring longer tool life. Motor housing milled from solid aluminum bar stock for precision alignment. Comes with a 1/4” double angle 300 series collet and two collet wrenches.
Please click on model number to view Part Prints
| Model # | H.P. | RPM | Throttle | Collet | Net Wt | Housing | Air Inlet | Height | Length |
|---|---|---|---|---|---|---|---|---|---|
| DE-2350 | 0.3 | 25,000 | Safety Lever | 1/4" | 1.30 lbs. | Aluminum | 1/4" | 1.34" | 9.15" |

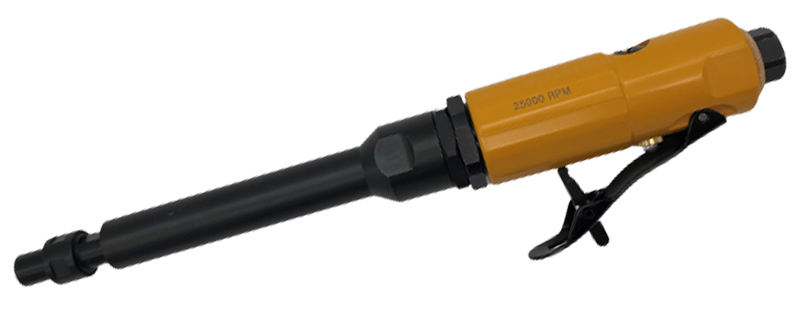

DE-2550 - 1/4" Extended Straight Die Grinder Rear Exhaust
Features a hardened alloy steel cylinder and rotor to maintain power while ensuring longer tool life. Motor housing milled from solid aluminum bar stock for precision alignment. Comes with a 1/4” double angle 300 series collet and two collet wrenches.
Please click on model number to view Part Prints
| Model # | H.P. | RPM | Throttle | Collet | Net Wt | Housing | Air Inlet | Height | Length |
|---|---|---|---|---|---|---|---|---|---|
| DE-2550 | 0.3 | 25,000 | Safety Lever | 1/4" | 1.50 lbs. | Aluminum | 1/4" | 1.34" | 11.15" |

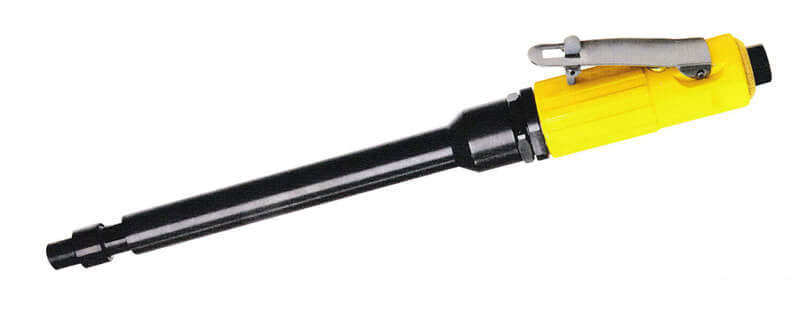

DE-2750 - 1/4" Extended Straight Die Grinder Rear Exhaust
Features a hardened alloy steel cylinder and rotor to maintain power while ensuring longer tool life. Motor housing milled from solid aluminum bar stock for precision alignment. Comes with a 1/4” double angle 300 series collet and two collet wrenches.
Please click on model number to view Part Prints
| Model # | H.P. | RPM | Throttle | Collet | Net Wt | Housing | Air Inlet | Height | Length |
|---|---|---|---|---|---|---|---|---|---|
| DE-2750 | 0.3 | 25,000 | Safety Lever | 1/4" | 1.70 lbs. | Aluminum | 1/4" | 1.34" | 13.15" |
Click here to view our full Global Link Tools catalog.
