Shank Rivet Hammer - .401, P-3X and P-4X / .498, P-5X and P-7XAir Hammer For Chipping, Scraping, Driving, Peening (Cross Reference .401 - CP-4444-RUSAB, CP-4444-RUTAB)(Cross Reference .498 - CP-4447-RUSAB, CP-4447-RUVAB)

Patco has three models of weld flux chisel and needle scalers. Patco scalers are made in the USA with high-quality hardened components. These tools are excellent for removing weld spatter, rust, cement and other debris from a variety of surfaces.

Patco riveters and air hammers offer the power and control needed to uniformly drive rivets used in aircraft and other assembly operations. This versatile tool can also be used for chipping, scraping, driving and peening applications. Manufactured using hardened steel piston and cylinder for maximum durability, these tools come in a range of barrel bore and stoke lengths and have a precision valve designed for slow heavy blows necessary to drive and hammer.

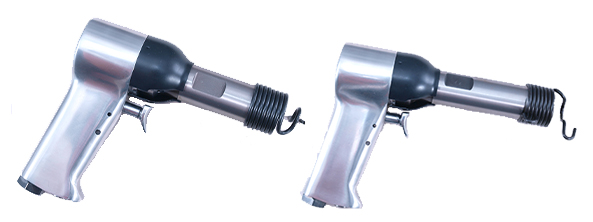

P-3X and P-4X .401 Shank Rivet Hammers (Cross Reference CP-4444-RUSAB, CP-4444-RUTAB)

P-3X-P-4X

Please click on model number to view Part Prints

Model # Shank Blows/min. Bore & Stroke O.A.L. Weight Air inlet
P-3X .401 2,160 1/2 x 2 7/8" 7 5/16" 2 1/4 lbs. 1/4"
P-4X .401 1,740 1/2 x 3 7/8" 8 5/16" 2 3/4 lbs. 1/4"
Contact Us

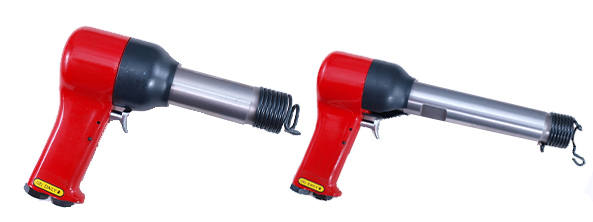

P-5X and P-7X .498 Shank Rivet Hammers (Cross Reference CP-4447-RUSAB, CP-4447-RUVAB)

P-5X-P-7X

Please click on model number to view Part Prints

Model # Shank Blows/min. Bore & Stroke O.A.L. Weight Air inlet
P-5X .498 1,560 3/4 x 2 11/16" 8 15/16" 4 3/4 lbs. 1/4"
P-7X .498 900 3/4 x 5 13/16" 11 15/16" 6 lbs. 1/4"
Contact Us

Click here to view our full Percussion Tools catalog.
