Right Angle Grinders - Type 1 - GA-1340-1, GA-1350-1, GAL-1340-1, GAL-1350-14 Inch Wheel, One of the Smallest Angle Heads on the Market (Cross Reference GA-1340-1, GA-1350-1 - CP-3040-LABTIM, CP-3040-GABTIM)(Cross Reference GAL-1340-1, GAL-1350-1 - CP-3040-LASTIM, CP-3040-GASTIM)
Patco angle grinders and sanders are rugged, powerful and designed to reach those hard to reach areas. These pneumatic angle grinders have one of the smallest angle heads in the industry. The powerful .7 h.p. motor means the operator still has the power to get the job done. These grinders and sanders are available in a variety of spindle sizes 1/4″-20, 3/8″-24 and 5/8″-11. The new three piece collet design now accepts a variety of double angle collets. The GA-11 series grinder has a wick lubricating system and is excellent for those jobs that require a heavy duty right angle grinder.

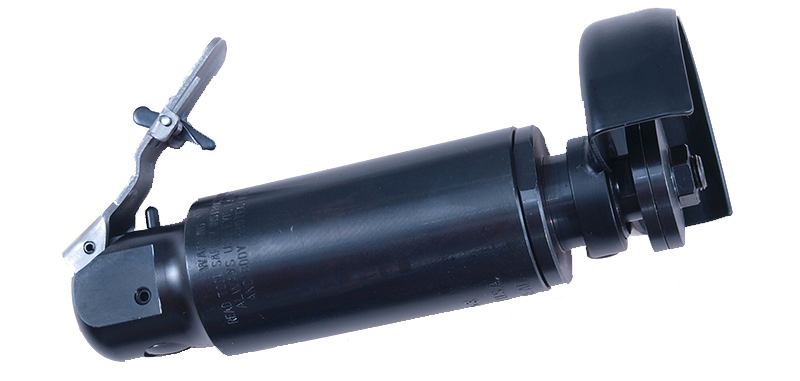

GA-1340-1 Type 1 Right Angle Grinder
(Cross reference CP-3040-LABTIM / CP-3040-GABTIM)
The Patco GA-1340-1 15,500 RPM Right Angle Grinder with 3/8-24”x 1” spindle and Type 1 wheel nuts come standard with a 4” guard. This tool has the same capabilities as the GA-1340 and has been given a longer spindle to allow for the use of a type 1 wheel. The GA-1340-1 is a great tool for industrial applications in foundries, welding shops, fabrication plants, steel mills, and shipyards. Its steel motor housing is made to withstand even the most rigorous work conditions over long periods of time. The housing is also available in a lightweight aluminum for a lighter feel.
| Model # | H.P. | RPM | Throttle | Spindle | Wheel | O.A.L. | Net Wt | Housing | Air Inlet |
|---|---|---|---|---|---|---|---|---|---|
| GA-1340-1 | .7 | 15,500 | Safety | 3/8"-24 | 4" Type 1 | 8" | 3 1/4 lbs. | Steel | 1/4" NPT |
| 1" Long | |||||||||
| GA-1340A-1 | .7 | 15,500 | Safety | 3/8"-24 | 4" Type 1 | 8" | 2 1/2 lbs. | Aluminum | 1/4" NPT |
| 1" Long |
GA-1350-1 Type 1 Right Angle Grinder
(Cross reference CP-3040-LABTIM / CP-3040-GABTIM)
The Patco GA-1350-1 15,500 RPM Right Angle Grinder with 3/8-24”x 1” spindle and type 1 wheel nuts comes standard with a 4” guard. This tool has the same capabilities as the GA-1350 and has been given a longer spindle to allow the use of a type 1 wheel. The GA-1350-1 is a great tool for industrial applications in foundries, welding shops, fabrication plants, steel mills, and shipyards. Its steel motor housing with a safety lock-off lever system (differs from the 1340 body lever style) is made to withstand even the most rigorous work conditions over long periods of time. The housing is also available in a lightweight aluminum for a lighter feel.
| Model # | H.P. | RPM | Throttle | Spindle | Wheel | O.A.L. | Net Wt | Housing | Air Inlet |
|---|---|---|---|---|---|---|---|---|---|
| GA-1350-1 | .7 | 15,500 | Safety Lock-off | 3/8"-24 | 4" Type 1 | 8 1/4" | 3 1/2 lbs. | Steel | 1/4" NPT |
| 1" Long | |||||||||
| GA-1350A-1 | .7 | 15,500 | Safety Lock-off | 3/8"-24 | 4" Type 1 | 8 1/4" | 3/4 lbs. | Aluminum | 1/4" NPT |
GAL-1340-1 Type 1 Right Angle Grinder
(Cross Reference CP-3040-LASTIM / CP-3040-GASTIM)
The Patco GAL-1340-1 15,500 RPM Right Angle Grinder with 3/8-24”x 1” spindle and type 1 wheel nuts comes standard with a 4” guard. This tool has the same capabilities as the GAL-1340 and has been given a longer spindle to allow the use of a type 1 wheel. The GAL-1340-1 is a great tool for industrial applications in foundries, welding shops, fabrication plants, steel mills, and shipyards. Its steel motor housing is made to withstand even the most rigorous work conditions over long periods of time. The housing is also available in a lightweight aluminum for a lighter feel.
| Model # | H.P. | RPM | Throttle | Spindle | Wheel | O.A.L. | Net Wt | Housing | Air Inlet |
|---|---|---|---|---|---|---|---|---|---|
| GAL-1340-1 | .7 | 15,500 | Safety | 3/8"-24 | 4" Type 1 | 10" | 3 1/2 lbs. | Steel | 1/4" NPT |
| 1" Long | |||||||||
| GAL-1340A-1 | .7 | 15,500 | Safety | 3/8"-24 | 4" Type 1 | 10" | 2 3/4 lbs. | Aluminum | 1/4" NPT |
| 1" Long |
GAL-1350-1 Type 1 Right Angle Grinder
(Cross Reference CP-3040-LASTIM / CP-3040-GASTIM)
The Patco GAL-1350-1 15,500 RPM Right Angle Grinder with 3/8-24”x 1” spindle and type 1 wheel nuts comes standard with a 4” guard. Optional 3", 4.5", and 3" Low Profile Guards are also available. This tool has the same capabilities as the GAL-1350 and has been given a longer spindle to allow the use of a type 1 wheel. The GAL-1350-1 is a great tool for industrial applications including foundries, welding shops, fabrication plants, steel mills, and shipyards. Its steel motor housing with a safety lock-off lever system (differs from the 1340 body lever style) is made to withstand even the most rigorous work conditions over long periods of time. The housing is also available in a lightweight aluminum for a lighter feel.
| Model # | H.P. | RPM | Throttle | Spindle | Wheel | O.A.L. | Net Wt | Housing | Air Inlet |
|---|---|---|---|---|---|---|---|---|---|
| GAL-1350-1 | .7 | 15,500 | Safety Lock-off | 3/8"-24 | 4" Type 1 | 10 1/4" | 3 3/4 lbs. | Steel | 1/4" NPT |
| 1" Long | |||||||||
| GAL-1350A-1 | .7 | 15,500 | Safety Lock-off | 3/8"-24 | 4" Type 1 | 10 1/4" | 3 lbs. | Aluminum | 1/4" NPT |
| 1" Long |
STANDARD EQUIPMENT
- GA-3500 4″ Wheel guard
- GA-3652 Spanner wrench
- GA-3653 Wrench
- GA-3858 Wrench
- GA-3495 Type 27 Wheel adapter
- GA-3588 Type 27 Wheel nut
STANDARD EQUIPMENT TYPE 1
- GA-3500 4″ Wheel guard
- GA-3495-1 Wheel spindle nut
- GA-3588-1 Wrench nut
- GA-3653 Wrench
OPTIONAL EQUIPMENT
- GA-3480 3″ Wheel guard
- GA-3545 4 ½″ Guard
- GA-3500-SP 3″ Low profile guard
- GA-3938 3/8-24 x 1/2″ Spindle
- GAL-3488 Extended angle head assembly with 3/8-24 spindle
- GA-3820 tune-up kit
- GA-3183-ASSM Drop in motor assembly (includes GA-3490 coupling)
- GA-8450 Gear grease 2oz tube
- GA-8350 Lubrication gun for grease/oil tubes
Click here to view our full Angle Grinders catalog.
