Patco Air Tools Replacement Parts
Drop-In Motor Assemblies
Reduce downtime with drop in replacement motor assemblies.
| Part # | Model | |
|---|---|---|
| G-0781-ASSM | Includes G-0858 collet body | G-3507 |

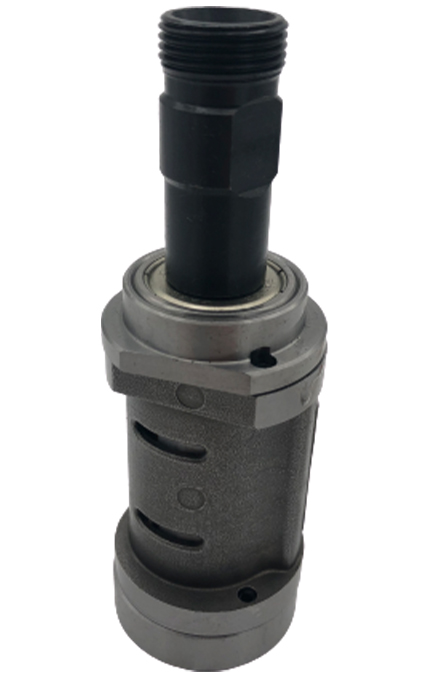

| G-3186-ASSM | Includes G-3256 Collet Shank | G-1340-, G-1350-, GR-2510, GR-1810 |
| G-3183-ASSM | Motor only | GA-11625, GA-11650 |
| GE-3183-ASSM | Includes G-3197 rotor nut | GE-1340-, GE-1350- |
| GA-3183-ASSM | Includes GA-3490 coupling | GA-1340-, GAL-1340-, GA-1350-, GAL-1350- |
| RE-3186-ASSM | Includes G-3256 collet shank | RE-3175-, RER-3175- |

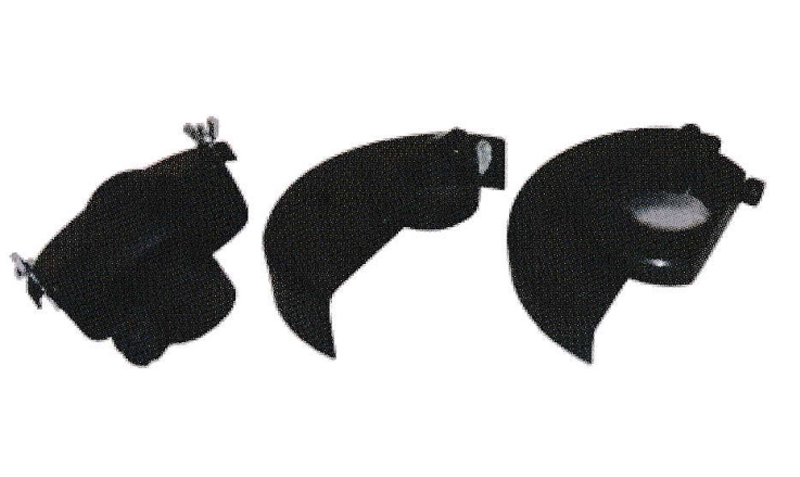

Guards
| Part # | Size and Tool Model |
|---|---|
| GA-3506 | 6" type 1 guard for GA-, GAL angle grinders |
| GA-3500 | 4" guard for GA-, GAL angle grinders |
| GA-3545 | 4 1/2" guard for GA-, GAL angle grinders |
| GA-3480 | 3" guard for GA-, GAL angle grinders |
| GA-3500-SP | 3" low profile guard for GA-, GAL angle grinders |
| GA-11208 | 5" guard for GA-11 angle grinder |
| GA-11204 | 4" guard for GA-11 angle grinder |
| GE-3939 | 3" Type 1 guard for GE- ext wheel grinders |
| GE-3764 | 4" Type 1 guard for GE- ext wheel grinders |
Repair Kits
| Model # | Description | Models |
|---|---|---|
| G-4001 | Motor tune-up kit | All Patco grinders except G-3507 |
| GA-11006 | GA-11 angle head repair kit (incl. gear & pinion) | All GA-11 right angle grinders |
| GA-3005 | Short angle tool repair kit (incl. gear & pinion) | All GA-/GS- right angle grinders |
| GA-3598 | Short angle tool gear & pinion set | All GA-/GS- right angle grinders |
| GA-3820 | Extended angle tool repair kit (incl. gear & pinion) | All GAL-/GSL- Ext. right angle grinders |
| GA-3972 | Extended angle tool gear & pinion set | All GAL-/GSL- Ext. right angle grinders |
| GE-4001 | Extended die grinder repair kit | GE-Ext. die grinders |
| GE-4001 | HD Heavy Duty Ext. Die grinder repair kit | GE-HD Heavy Duty Ext. die grinder |
Air Tool Oil and Grease
| Model # | Description |
|---|---|
| GA-8250 | 2 oz tube Gear oil for GA-11 tools wick lubrication system |
| GA-8450 | 2 oz tube Gear grease for GA/GAL angle grinders |
| GA-8350 | Lubrication gun for 2 oz tubes |
Double Angle (DA) Collets
200 Series
| Model # | Size |
|---|---|
| G-4158 | 1/8" |
| G-4159 | 3/16" |
| G-3729 | 1/4" |
| G-3375 | 3/8" |
| G-4164 | 23/64" |
300 Series
| Model # | Size |
|---|---|
| G-0318 | 1/8" |
| G-0314 | 1/4" |
*Other sizes available upon request

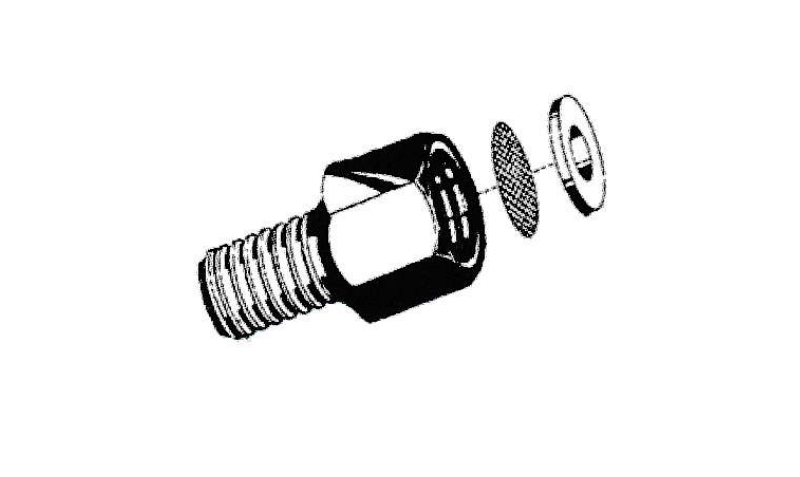

Screened Inlet Bushing
| Model # | Size |
|---|---|
| 9555 | 1/4" MPT x 1/4" FPT |
| P-1438 | 1/4" MPT x 3/8" FPT |
| 9553 | 3/8" MPT x 1/4" FPT |
| P-3838 | 3/8" MPT x 3/8" FPT |
| P-3812 | 3/8" MPT x 1/2" FPT |
| P-1238 | 1/2" MPT x 3/8" FPT |
| P-1212 | 1/2" MPT x 1/2" FPT |

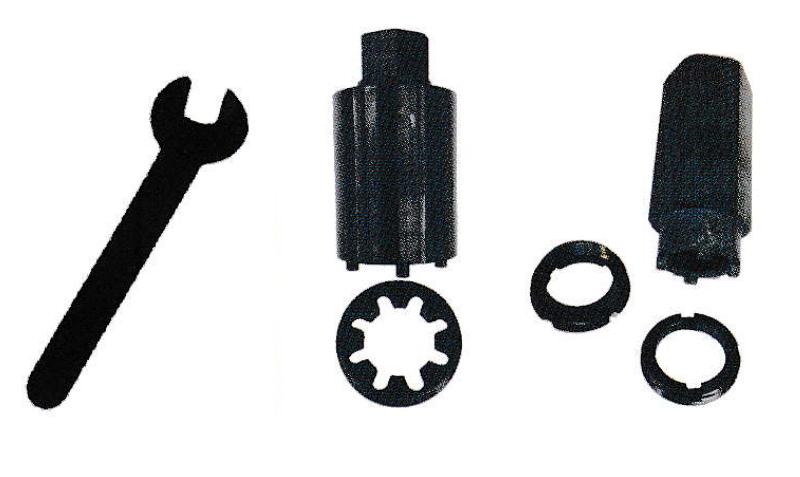

Wrenches and Special Tools
| Model # | Size |
|---|---|
| G-3856 | 7/16" |
| G-3857 | 1/2" |
| G-3858 | 9/16" |
| GA-3653 | 5/8" |
| G-3860 | 11/16" |
| G-3327 | 3/4" |
| GA-3651 | Spanner |
| GA-3652 | Spanner |
| G-3900 Removes G-3187 motor nut |
Motor Nut Removal |
| GA-3901 Removes GA-3487/GA-3489 |
Angle head Nut Removal Tool |
Click here to view our full Replacement Parts catalog.
