Chipping Hammers - Mini 4-Bolt, Pneumatic - CHP-4BM-H, CHP-4BM-R For Concrete, Cleaning Castings, Forgings, Refractories, Gunite, Brick Work
Patco Air Tools is excited to announce the release of our new tool line ~ GLOBAL LINK TOOLS!
Global Link Tools are a cost effective option to fit the various budget demands of today’s economy without sacrificing quality. Our new line of tools meet all of the strict manufacturing requirements of PATCO AIR TOOLS as well as the quality, value, performance and dependability that our customers expect, demand, and trust from all of our fine products.

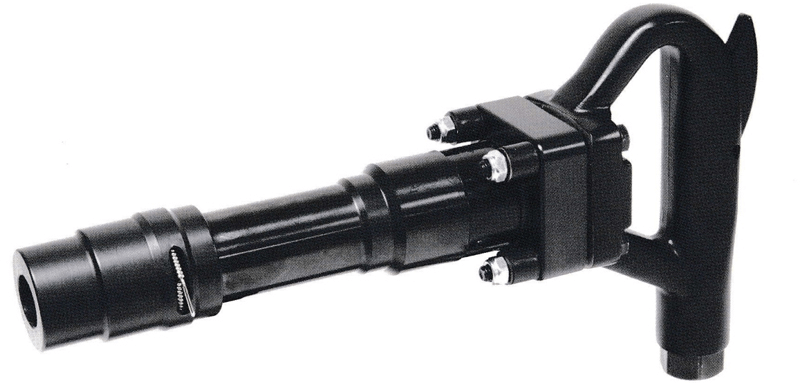

CHP-4BM-H - Mini 4-Bolt Chipping Hammer
Two-step piston design, the Mini 4-Bolt .580 hex design is ideal for cleaning castings and forgings, as well as refractory, gunite and brick work. Hits harder than any other 10 lb. chipping hammer currently on the market.
Please click on model number to view Part Prints
| Model # | Blows per Minute | Throttle | Stroke | Bore | Length | Weight | Air Inlet Thread |
|---|---|---|---|---|---|---|---|
| CHP-4BM-H | 2750 | Safety Lever | 2.6" | 1.1" | 14-1/4" | 10.5 lbs. | 3/8" or 7/8-24 |
CHP-4BM-R - Mini 4-Bolt Chipping Hammer
Two-step piston design, the Mini 4-Bolt .680 round shank design is ideal for cleaning castings and forgings, as well as refractory, gunite and brick work. Hits harder than any other 10 lb. chipping hammer currently on the market.
Please click on model number to view Part Prints
| Model # | Blows per Minute | Throttle | Stroke | Bore | Length | Weight | Air Inlet Thread |
|---|---|---|---|---|---|---|---|
| CHP-4BM-R | 2750 | Safety Lever | 2.6" | 1.1" | 14-1/4" | 10.5 lbs. | 3/8" or 7/8-24 |
Click here to view our full Global Link Tools catalog.
